Theory of
Computation

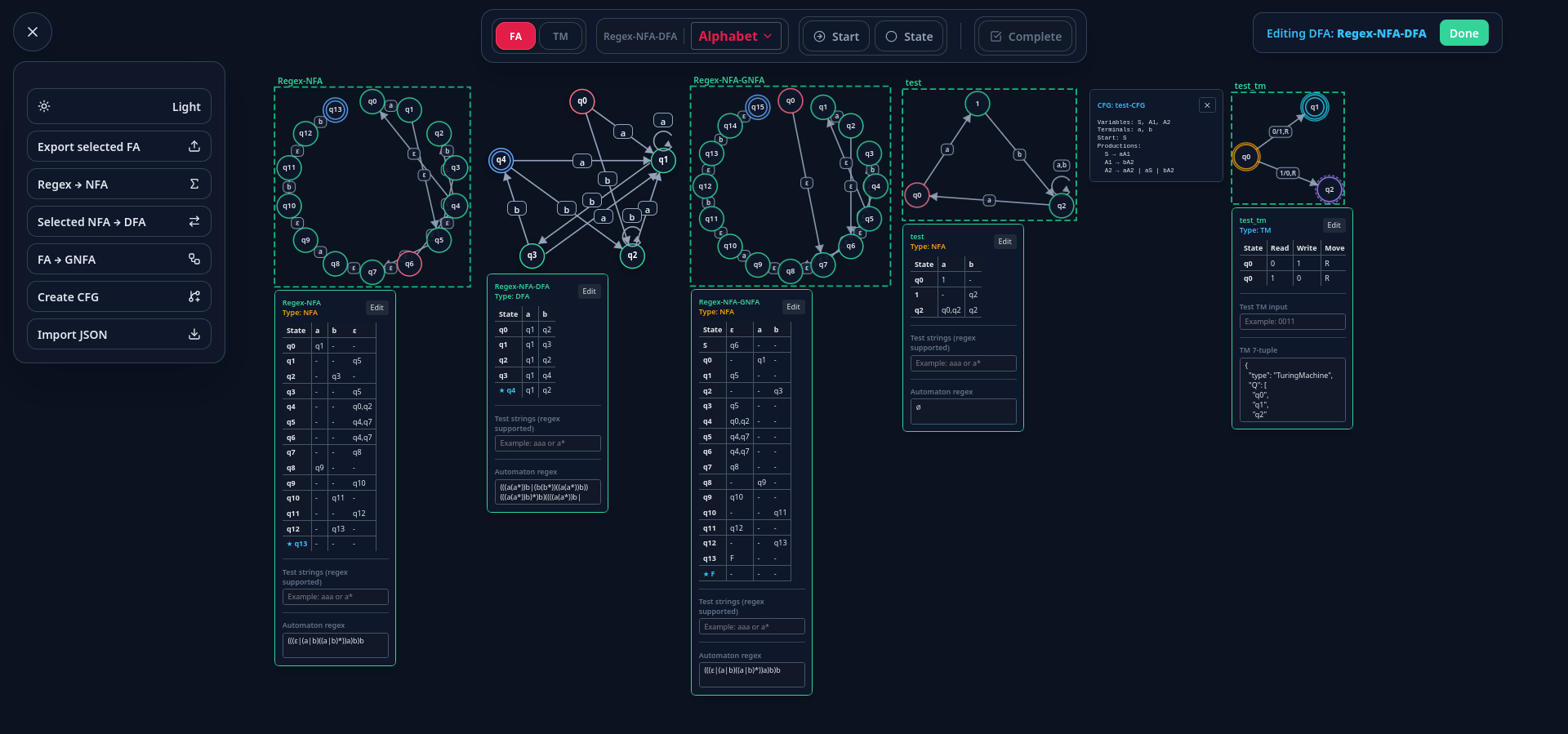

An Interactive Simulator

First online edition · DFA · NFA · PDA · TM · Mealy · Moore

Open the simulator →Contents ↓
q0q1q2ababba

q0⊢q0⊢q1⊢q2⊢∈ F

§1 · DFA / NFA

Finite Automata

Place states, draw transitions, and test strings on deterministic and nondeterministic finite automata. Convert NFA to DFA with one click via subset construction — every intermediate DFA state is labeled with the NFA states it represents.

Fig 1.1 — DFA accepting strings ending in "aa"q0q1q2ababba
Fig 1.1 — DFA accepting strings ending in "aa"

§2 · PDA / NDPA

Pushdown Automata

Model stack-based computation with full stack-alphabet support using input,pop/push notation. Deterministic and nondeterministic variants share the same canvas, with the stack contents rendered live as you step through an input.

Fig 2.1 — PDA recognizing aⁿbⁿq0q1q2a,Z/XZa,X/XXb,X/ε
Fig 2.1 — PDA recognizing aⁿbⁿ

§3 · Single & multi-tape

Turing Machines

Build Turing machines with accept, reject, and normal states. Multi-tape support uses semicolon-separated transition segments, so each tape head reads, writes, and moves independently on every step.

Fig 3.1 — TM incrementing a binary stringq0q_acc0/1,R_/_,R
Fig 3.1 — TM incrementing a binary string

§4 · Mealy / Moore

Sequential Machines

Design output-producing machines. Mealy outputs on transitions; Moore outputs on states. Both share the finite-automaton canvas workflow, so switching between them keeps your layout and only changes how output is read.

Fig 4.1 — Mealy machine, parity of 1sevenodd1/11/00/0
Fig 4.1 — Mealy machine, parity of 1s

§5 · Regex → NFA → DFA, GNFA, CFG

Conversions

Type a regular expression and watch it convert to an NFA via Thompson's construction, then optionally determinize to a DFA via subset construction. Run it in reverse with GNFA state elimination to recover a regex from a saved automaton, or extract a Context-Free Grammar skeleton.

Fig 5.1 — Thompson construction, a single symbolq0q1a
Fig 5.1 — Thompson construction, a single symbol

§6 · Teams

Working Together

Create a team, invite collaborators with a code, and organize automatons into projects. Every submission keeps its full canvas layout, so teammates can open it straight into the simulator with the states exactly where you left them.
